uFR Readers Tool is a unique software tool designed for the µFR hardware setup. This is the only software capable of completely resetting the µFR device and restoring its factory default settings. Even if you previously locked your device and forgot the password or you’ve changed its baud rate by mistake, you can “bring it back to life” in just a few steps with the µFR Readers Tool.
Docs & Software Download
Software overview
Software functions:
- Reader Reset
- Reader Soft Reset
- Check Reader Connection
- Factory Reset
- Baud Rate Setup
- Boud Rate Reset
- Reader Signalization Setup
- Sleep Mode Setup
- Communication Speed Setup
- Reader Lock/Unlock
Available programming languages:
- C++ source code & executable software tool
Supported operating systems, platforms, and environments:
- Cross-platform
Supported hardware:
- µFR Series Devices
| Software respiratory | Description |
| ufr_reader_tool |
Software tool for setting uFR readers to default state and values. |
Software manual

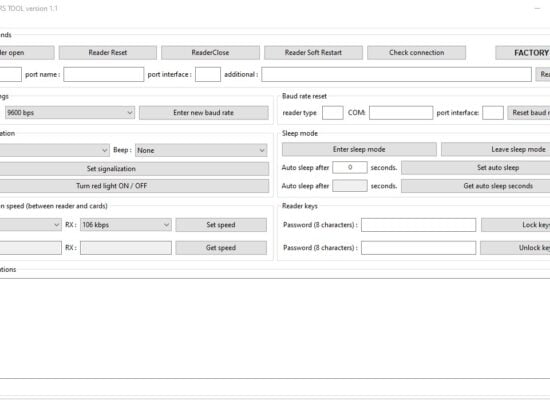

1. µFR Readers Tool – Main Software Commands
Download:ufr_reader_tool

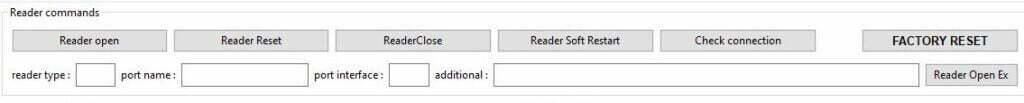

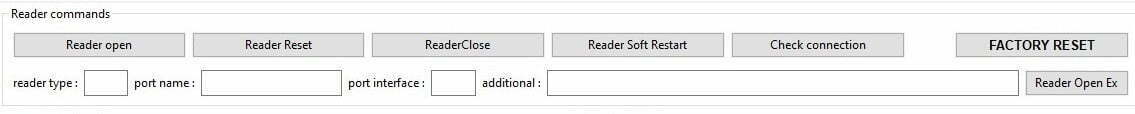

The first group of commands at the top of the µFR Readers Tool software GUI refer to the connection establishment and the hardware reset functions.
1.1 µFR Readers Tool – Reader Open
点击读者打开button to connect the device. This function will automatically search for the first available µFR Series device attached.
If any µFR device is detected, the software will display its basic info (serial number, hardware version, firmware version, device type).

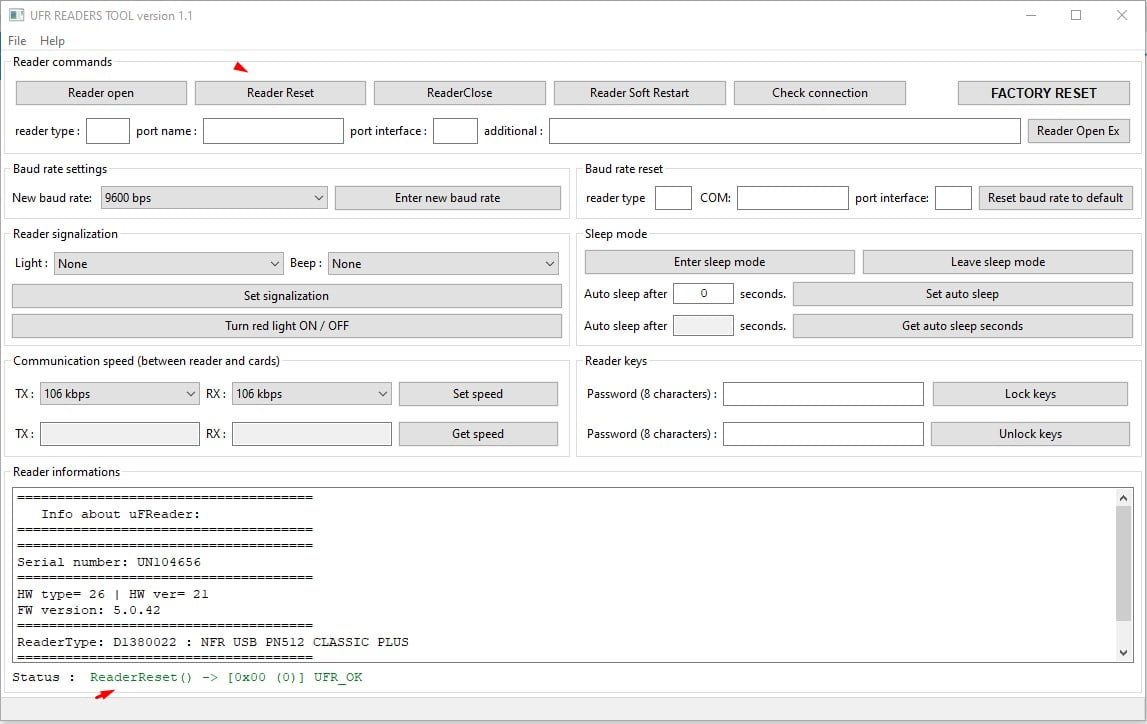

1.2 µFR Readers Tool – Reader Reset
The function Reset Reader simply resets the hardware. The infobox at the software bottom will display the device current info.
1.3 µFR Readers Tool – Reader Close
The function Reader Close simply closes the communication with the currently connected device.
1.4 µFR Readers Tool – Reader Soft Restart
Reader Soft Restart reloads the device connection through the software.

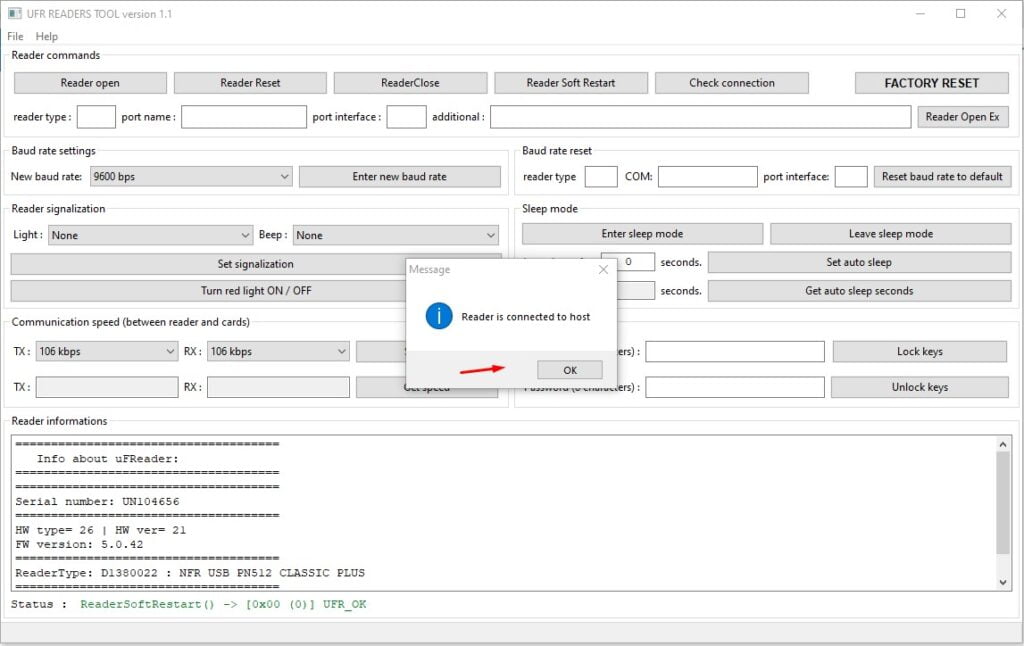

1.5 µFR Readers Tool – Reader Check Connection
The function Reader Check Connection checks for connections to the attached µFR devices. If the device is physically attached to the computer but not detected by the µFR Readers Tool software, this indicates that there may be a problem with the hardware installation (missing drivers, corrupted firmware, damaged USB cable, etc).

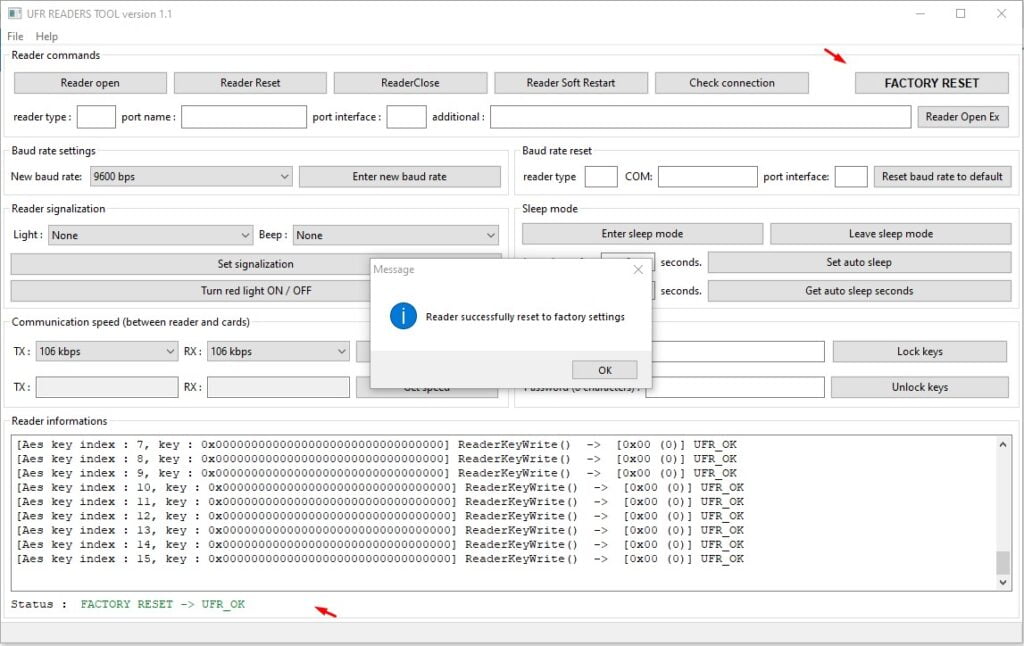

1.6 µFR Readers Tool – Reader Factory Reset
To reset the µFR Series device to the factory defaults, simply click the Factory Reset button. This function will overwrite all the device settings, including the device lock/unlock Keys.

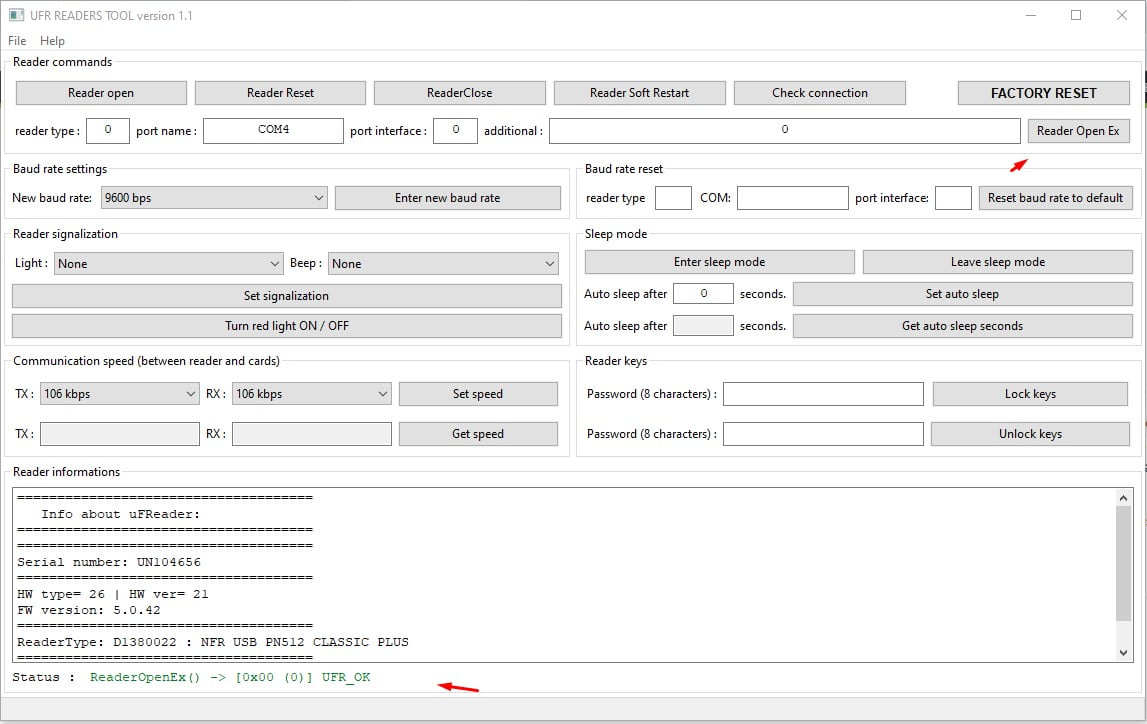

1.7 µFR Readers Tool – Reader Open Ex
This function allows you to open the Reader in several ways. It can be used to establish communication with COM port, as well. The file uFCoder.h file contains the enumeration E_READER_TYPE with values:
enum E_READER_TYPE
{
AUTO = 0,
UFR_TYPE = 1,
UFR_RS232_TYPE = 2,
BASEHD_UFR_TYPE = 3,
UFR_ONLINE_TYPE = 4
};
This enumeration values are the reader_type parameters for theReaderOpenExfunction. For the automatic search use the value 0.
EXAMPLE
If the specifiedreader_type值是4,年代oftware will search for the μFR Online Series devices only. For theport_nameadd the IP address of the device or its serial number (egg 192.168.1.123orON101390), and for the port_interface add value ‘U’ for UDP, ‘T’ for TCP, or 0 for the operating mode automatic search. In the field of additional argument (additional) enter the μFR device serial number to open it on 1Mbit/s (egg “UN123456”) or 0 for automatic search.
Note: If you have more than one μFR device attached and use the automatic search option (value 0), the software will discover and connect to the first available μFR device.
Find detailed instructions inAPI Docs.
2. µFR Readers Tool – Baud Rate Settings
The first group of commands refers to the connected µFR device serial port is capable of transfer. It includes the baud rate set and reset function.
2.1 µFR Readers Tool – Change Baud Rate

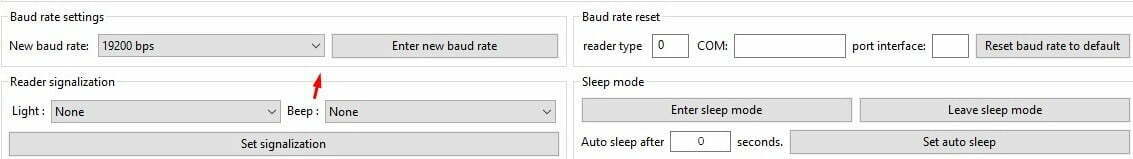

- To set the new baud rate of the serial port with the uFR device connected, select the new band rate from a dropdown list of theBand Rate Settingspanel and click the buttonEnter New Bound Rateto confirm the change.

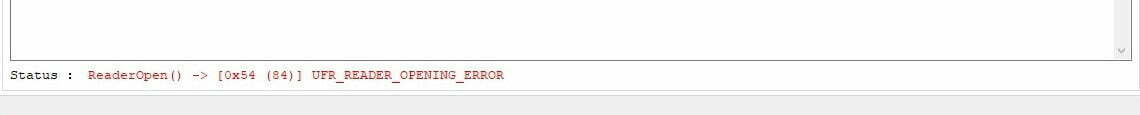

- When the baud rate changes, after you restart your device or the software tool, the status bar will display the reader opening error, as shown on the screenshot below.
This is an expected error and nothing to worry about. Since the Reader baud rate is changed, it’s no longer paired to the computer rate. To establish the connection again, use theBound Rate Resetcommands of the software right panel.
- To set the new baud rate of the serial port with the uFR device connected, select the new band rate from a dropdown list of theBand Rate Settingspanel and click the buttonEnter New Bound Rateto confirm the change.

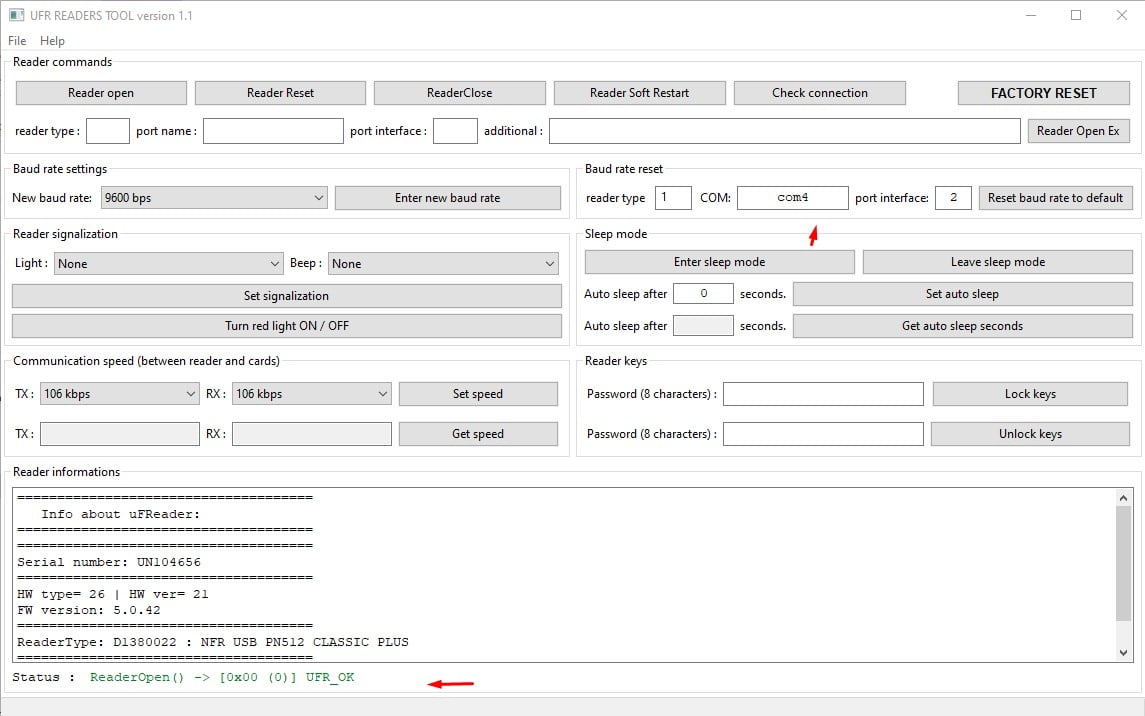

2.2 µFR Readers Tool – Baud Rate Reset

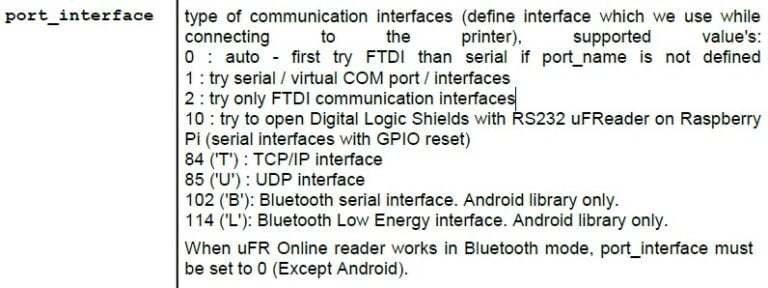

To reset the µFR device baud rate, you need to enter the communication parameters manually. Search your computer system for theµFR deviceCOM port name. Fill in the COM Port field by specifying the device port number, including its prefix COM. Also, take a look at theµFR Series APIto find two other parameter values. Specify the Reader Type value, and Port Interface value, both defined byAPI. The 0 value for any of these parameters will run an automatic search. Still, have in mind, when it comes to the band ratechange, the auto searchfunctionmight fail. Instead of 0, we recommend you specify the exact Port Interface value (e.g. value 2 for FTDI driver).
Click the button ResetBaud Rate To Defaultto confirm the baud rate reset.
If all parameters are correct, the status bar will display the message Reader Open status is OK.
NOTICE: The µFR Series devices baud rate can be also reset in a few steps by the special Digital Logic console tool –ufr-baud_rate_change_console.
3. µFR Readers Tool – Reader Signalization
The group of commands under the Reader Signalization section refers to the µFR device beeper and LED light signal setup.
3.1 µFR Readers Tool – Reader Light Signalization Setup

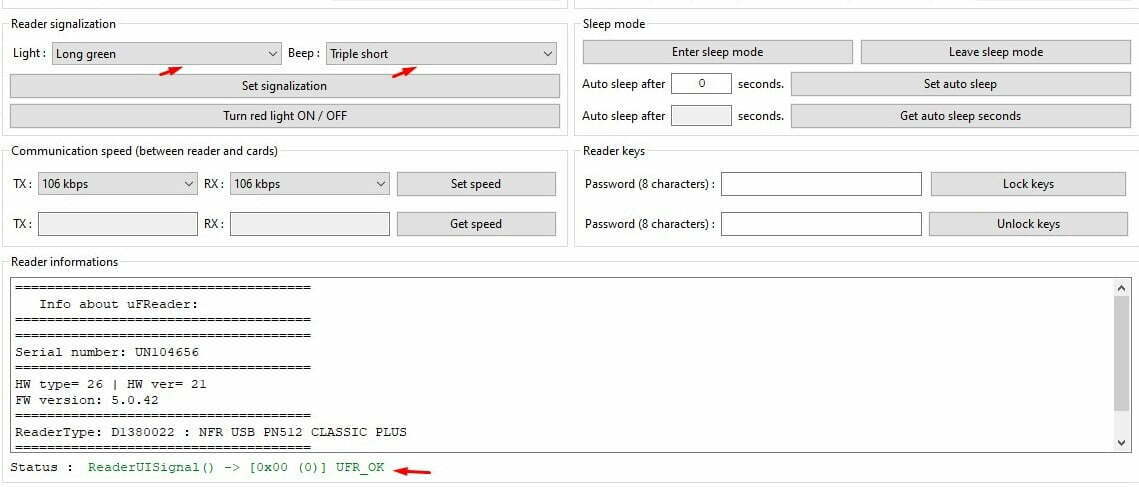

Select the desired behavior (Light dropdown list for the light signals and Beep dropdown list for the audio signals). Click theSet Signalizationbutton to confirm new settings
3.2 µFR Readers Tool – Red Light Reader Signalization

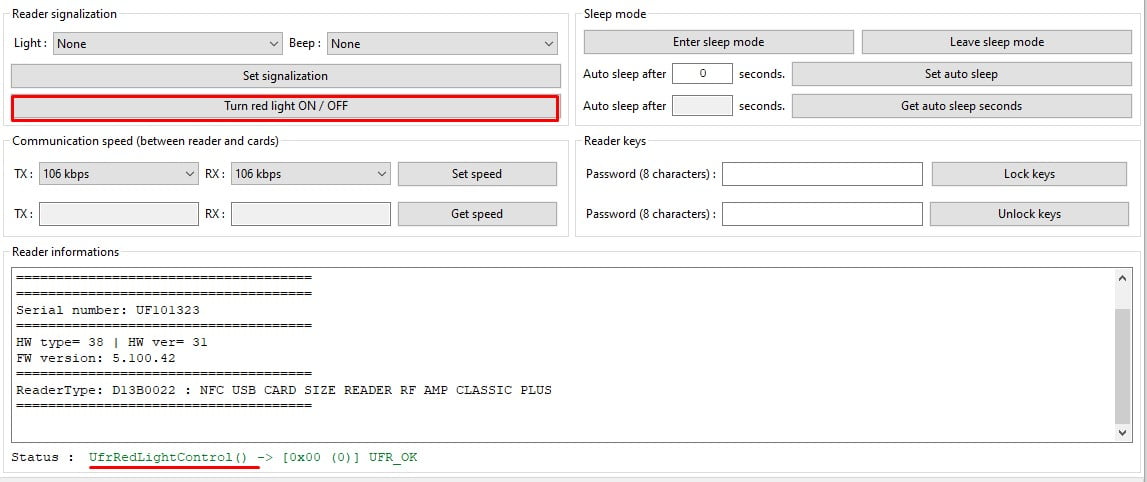

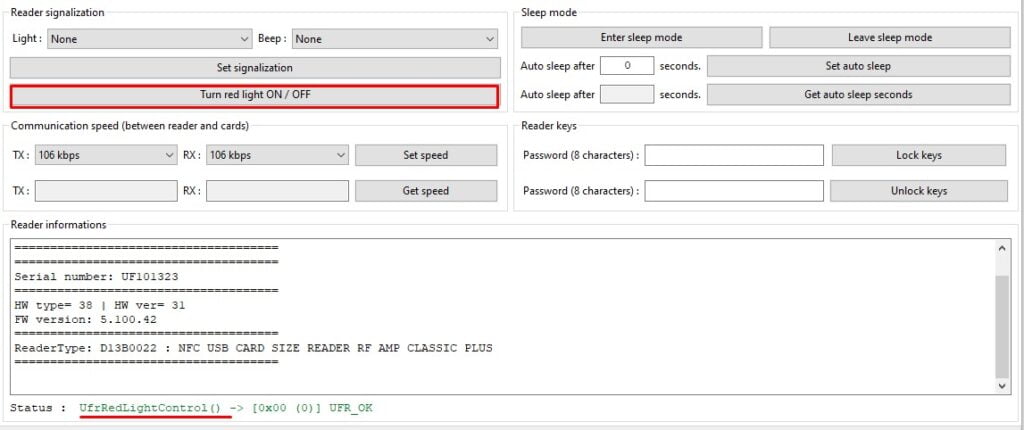

To enable/disable the constant red light signal on the reader, click theTurn Read Light On/Ofbutton. While the option is enabled, the device will keep the red LED light on.
4.µFR读者工具——睡眠模式
The group of commands on the interface left side, under the Sleep Mode section, contain the µFR device sleep mode setup options.
4.1 µFR Readers Tool – Enable/Disable Sleep Mode Manually

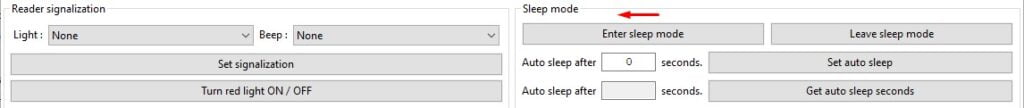

本节功能按钮的顶部ows you to enable or disable the sleep mode on your µFR device manually. Click the进入睡眠莫debutton to activate, and the进入睡眠莫debutton to deactivate the sleep mode of the connected reader.
4.2 µFR Readers Tool – Auto Sleep Mode Setup

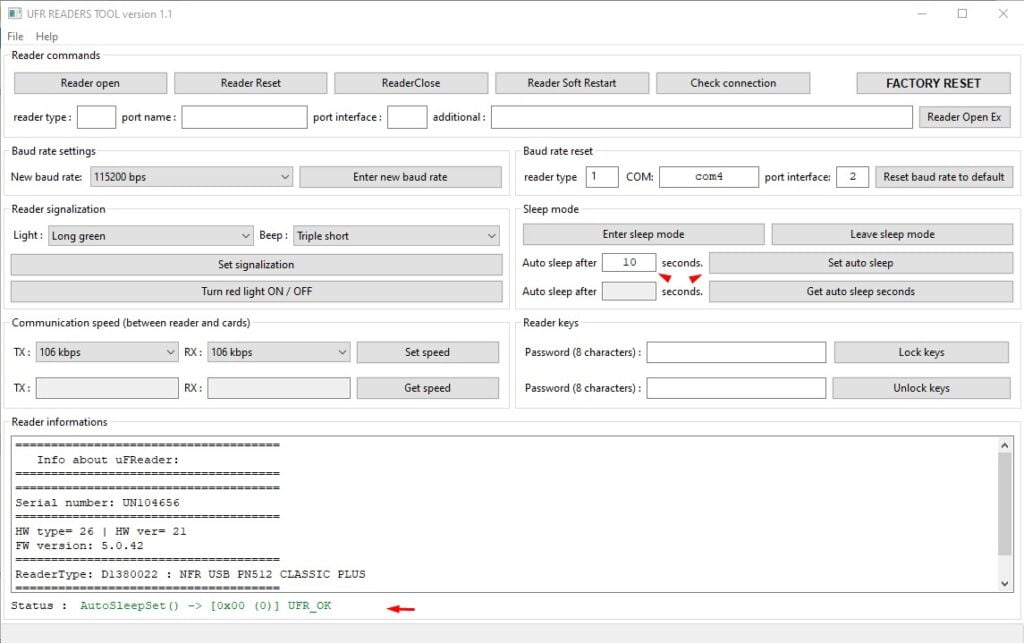

Instead of activating the µFR device Sleep Mode manually, you can set the automatic Sleep Mode activation by defining the standby period before the device will turn into the Sleep Mode. To set this function, fill in the Auto Sleep After filed by entering the standby interval in seconds to precede the Sleep Mode activation. Click theSet Auto Sleepbutton to confirm the new settings.
4.3 µFR Readers Tool – Check The Auto Sleep Mode Settings
To check if the Auto Sleep mode is set on the connected µFR device, and to get the preset number of seconds before Auto Sleep Mode activation, click theGet Auto Sleep Secondsbutton. This function will display the predefined number of seconds for the current reader. If theAuto Sleep Afterfield value on the left is 0, this indicates that the Auto Sleep Mode on the connected device is not enabled.

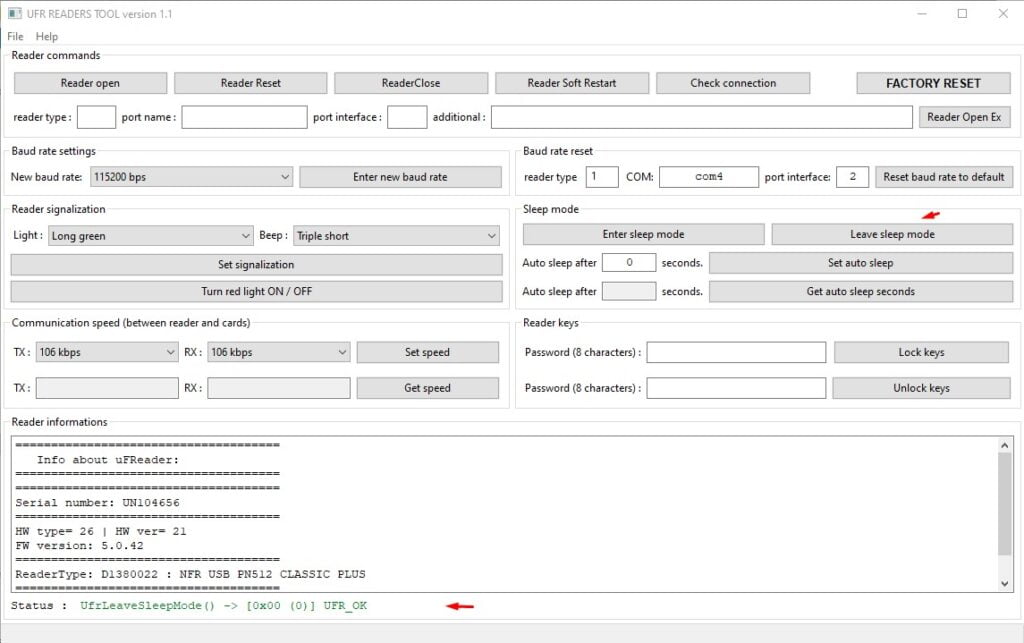

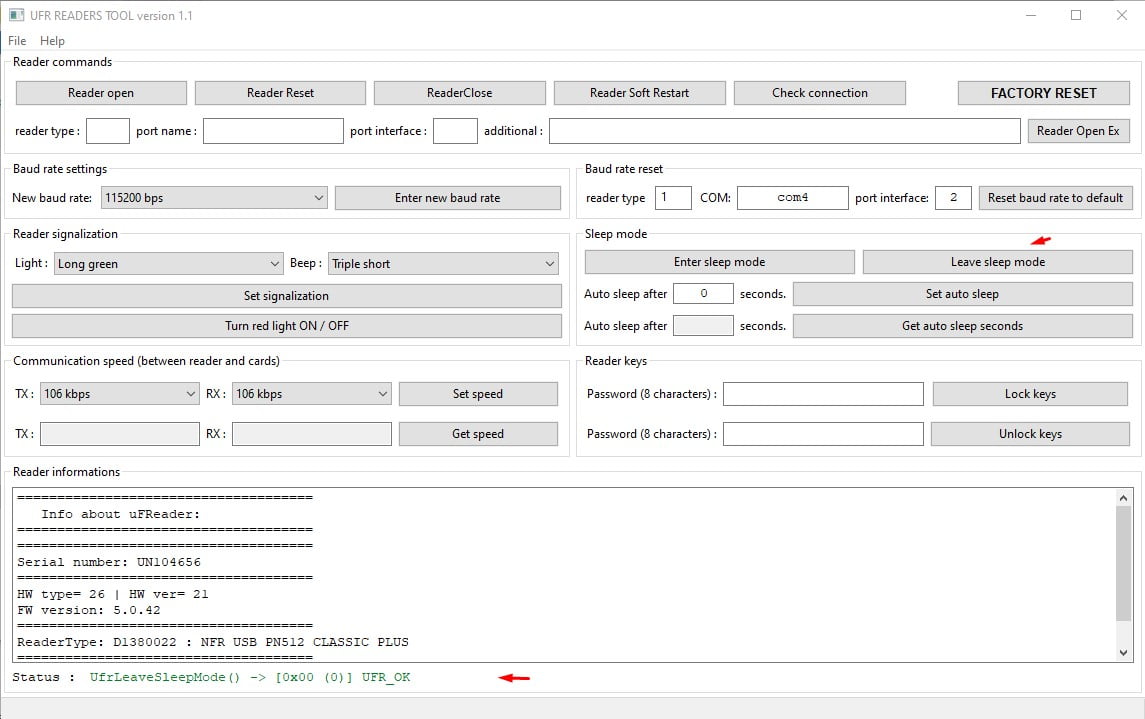

Note: Regardless of whether Sleep Mode on the connected device is activated manually or automatically, it can be canceled by clicking theLeave Sleep Modebutton.

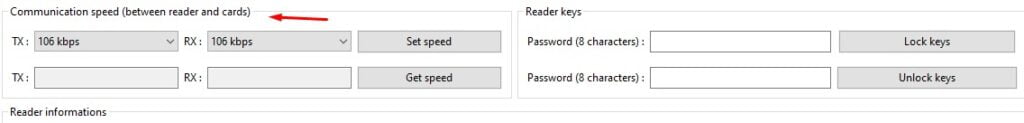

5. µFR Readers Tool – Communication Speed
Thie set of commands allows you to set the communication speed between the connected µFR device and the card/tag used.

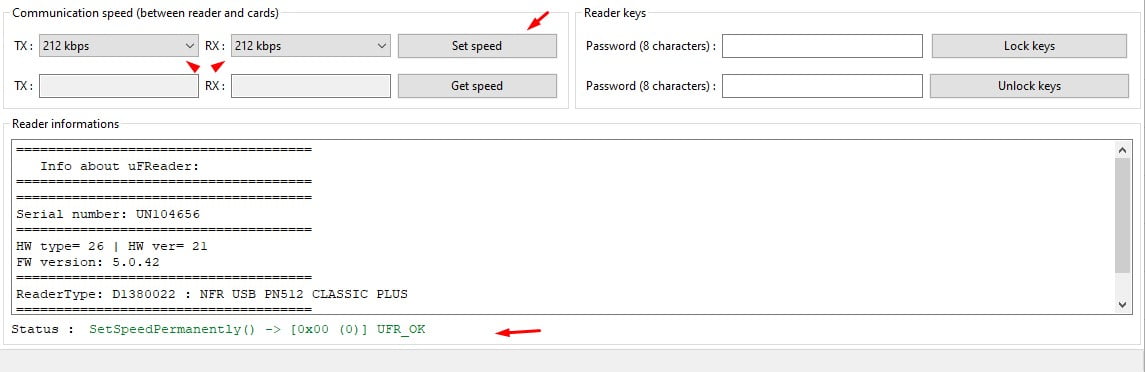

5.1 µFR Readers Tool – Change Communication Speed
To adjust the communication speed between your NFC RFID hardware, select the desired speed on the dropdown menu. Then click theSet Speedbutton to save the new settings.

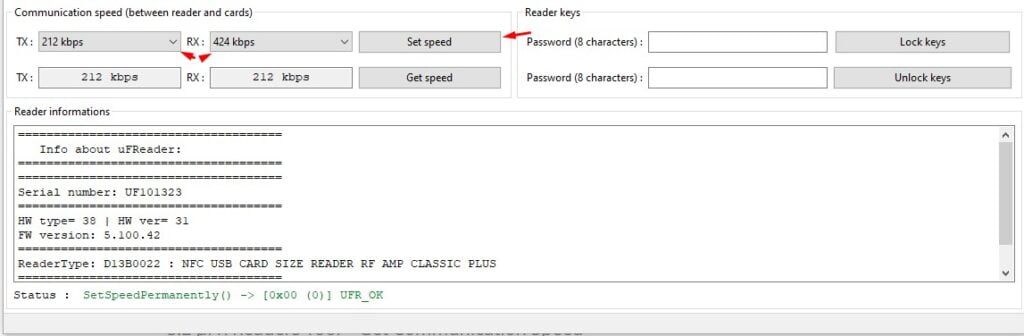

To set the different speed for data transmission and data receiving, select different values from the TX and RX dropdown many.
Note: Once you’ve changed your µFR device communication speed, these new settings will remain until you reset the speed again. Consequently, the connected µFR Reader will not be capable to establish the communication with cards/tags that operates on any other than the currently defined µFR device speed. To enable communication with those card/tag types, you need to set the µFR device communication speed to the value equal to the card/tag speed.

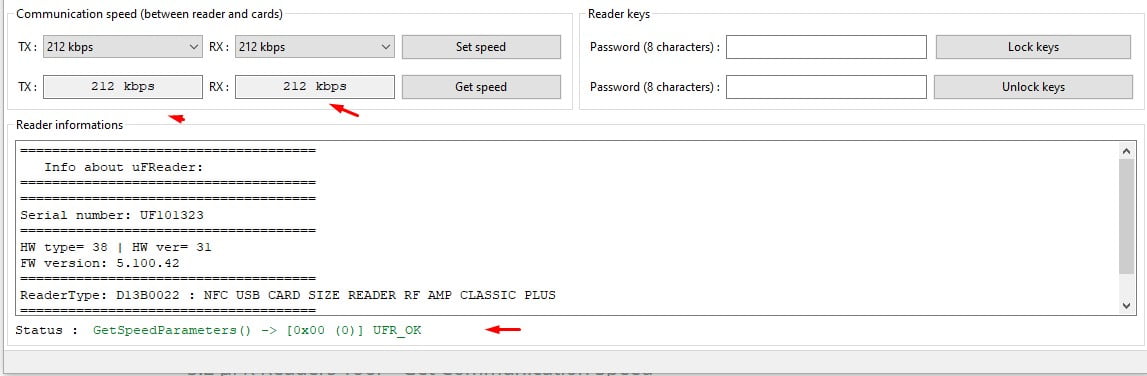

5.2 µFR Readers Tool – Get Communication Speed
To check your connected µFR device predefined communication speed, click theGet Speedbutton. The field of this button left side will display the device currently set communication speed.

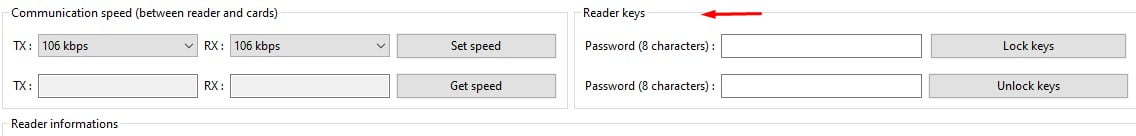

6. µFR Readers Tool – Reader Key
To prevent the hardware misuse, you can lock your µFR device by 8-bytes Reader Key password.

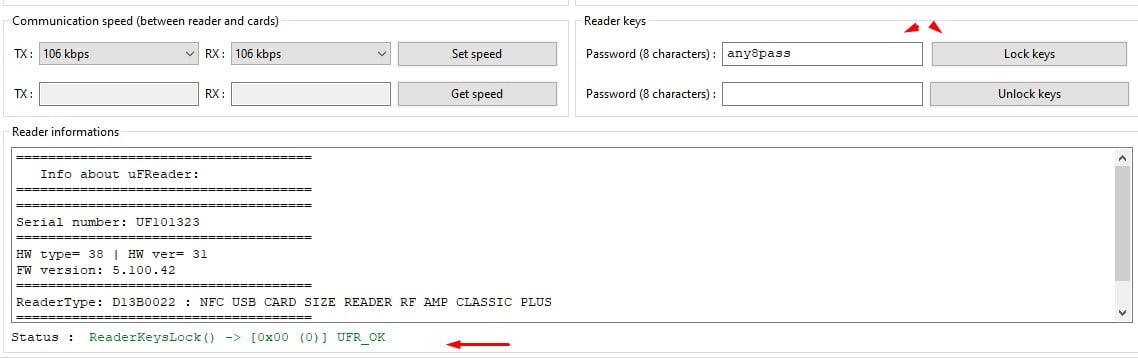

6.1 µFR Readers Tool – Set Reader Key
To set the access Key for your device, enter the desired 8-byte password into the Reader Key field. Then click theLock Keysbutton to save the Key into the reader.

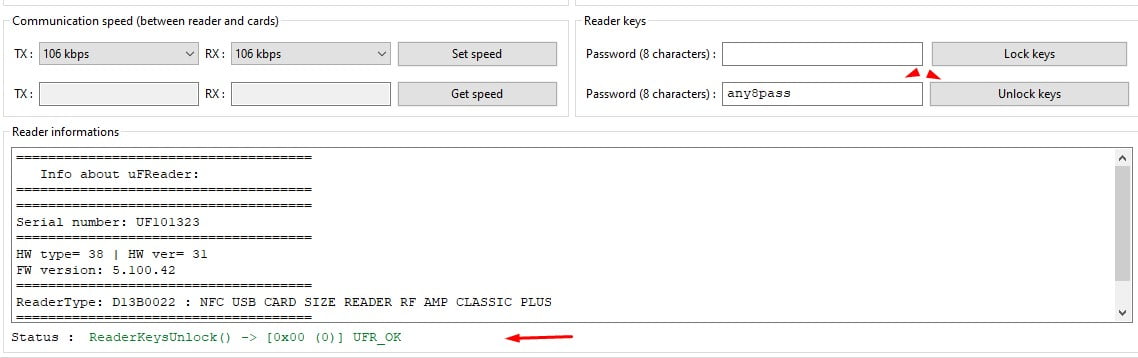

6.2 µFR Readers Tool – Unlock The Reader
To access the locked µFR device features, enter the preset 8-byte password in the bottom Reader Key field, and click theUnlock Keysbutton to unlock the reader.
This manual presents the executable software with source code in the C++ programming language. Source code SDK s also available.
